The complete dynamic building simulation package

Tas Engineering has a modular design, with dedicated programs serving a specific purpose, facilitating a methodical workflow.

3D Modeller

For creating building models for simulation & performing daylight analysis.

DWG Import

Create geometry by tracing around floor plans.

Daylight Calculations

Can be performed and viewed in the 3D modeller, to get instant feedback on a design.

2DPlanView
3DView

gbXML Import

Intelligent gbXML import can repair common problems with geometry enabling a BIM workflow

Rendered Views

Photorealistic 3D rendered views can be generated using the daylight engine.

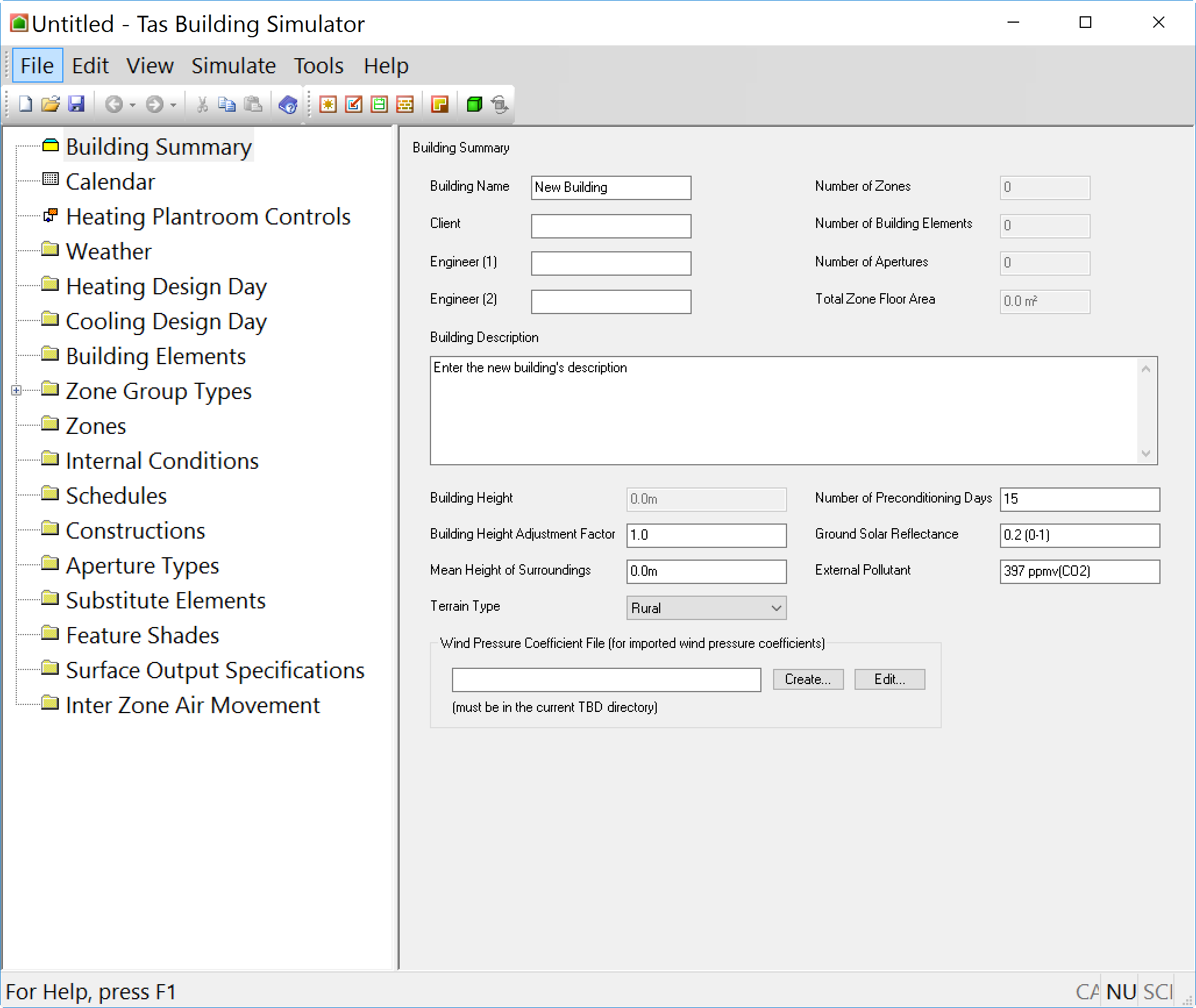

Building Simulator

For adding apertures, internal gains, constructions and performing a dynamic simulation

Dynamic

Fast, accurate hourly dynamic simulation

Reusable Databases

Re-use construction, internal gain and calendar data for an efficient workflow.

BuildingDesigner

3D Visualisation

Quickly identify zones and where constructions, apertures and building elements are assigned.

Utilities

Collection of utilities and wizards make performing common tasks quick and easy.

The Building Simulator can be used to perform overheating analysis, calculate heating and cooling loads, calculate air flows and more.

Results Viewer

For storing, viewing and exporting 2D and 3D hourly results

Tabular Export

Export hourly data for zones, building and surfaces to excel for detailed analysis

Generate Reports

Use results viewer files as the input to our report viewer.

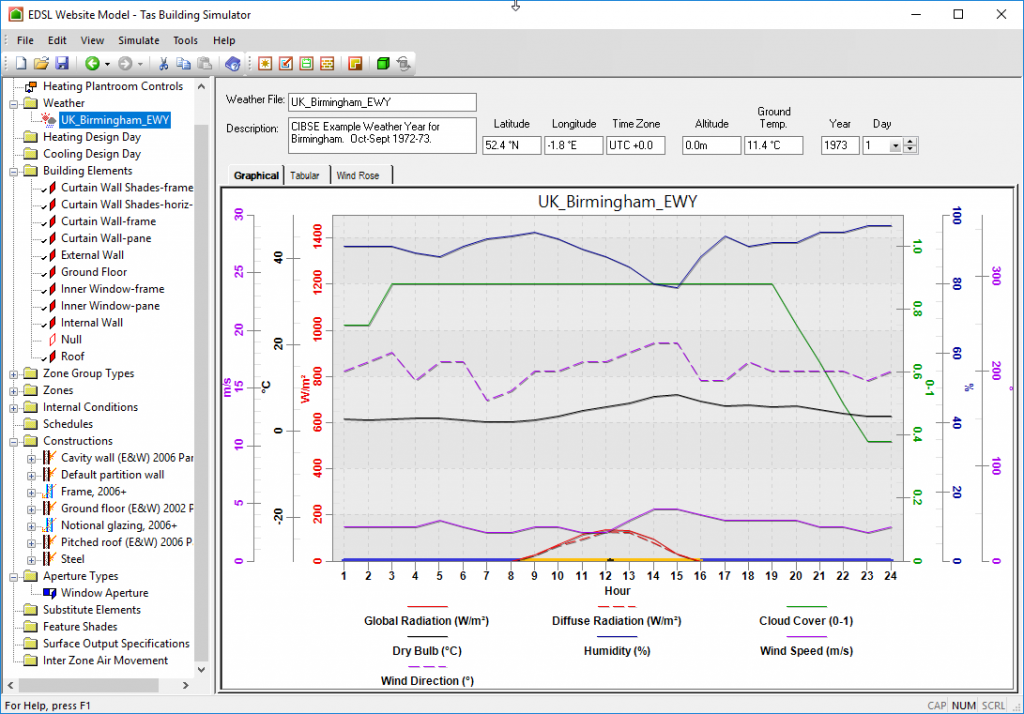

TBDWeather
Thermal-Comforts
BOW-Calgary-mixed-mode-with-natural-ventilation-external-solar-gain
natural-ventilation_170801160249

3D Export

Export pictures and videos with intelligent colouring and labels that reflect various metrics

Clear Charts

Fully customisable charts make it easy to present complex data clearly and identify trends​

Systems

Powerful HVAC modeller for calculating actual energy consumption based on the demands predicted by the Building Simulator.

Component Based Plant Modeller

Add, delete, or edit individual components in the system. Create custom systems and save them for future use.​

Editable Control Logic

Control component operation based on a wide range of parameters to accurately imitate real-life system behaviour.

SystemsModel
Systems AirSide
customplantroom
vavgraph
editable control logic
tpd

Systems Wizard

Pre-built airside and waterside systems are available through the Systems Wizard, including 90.1 baseline systems.​

Detailed Results and Report Generation

Interrogate the results in detail with graphs, tables, and psychrometric charts. Automatically generated reports give system setup details and sizing data.

Utilities

Tas Engineering comes with a multitude of utilities that link together the various core aspects of the software to perform specific tasks.

3D Modeller

Daylight Analysis Wizard:

  • Equivalent First Zone
  • Daylight Factors
  • Vertical Sky Component
  • Permanent Overshadowing
  • Daylight Distribution

Building Simulator

Percentage Mean Vote & Percentage People Dissatisfied Tool:

  • Thermal comfort for free running buildings

IDF Wizard:

  • Import or Export geometry and building data between Tas and EnergyPlus via an IDF file

DOE Importer:

  • Import data from a DOE-2 INP file

Cymap Systems tool:

  • Import flow rates calculated by systems into the building simulator file for use by Cymap

BCA J2 Glazing:

  • Test glazing designs against the Australian J2 Regulations

Combined

ASHRAE 90.1 Studio:

  • Collate and manage Tas files for 90.1 projects
  • Generate Baseline building geometry and lighting

UK Building Regulations 2010 Studio:

  • L2a & EPCs

UK Building Regulations 2013 Studio:

  • L2a & EPCs

Tas Generic Optimisation:

  • Perform parametric simulations
  • Perform dynamic optimisation
